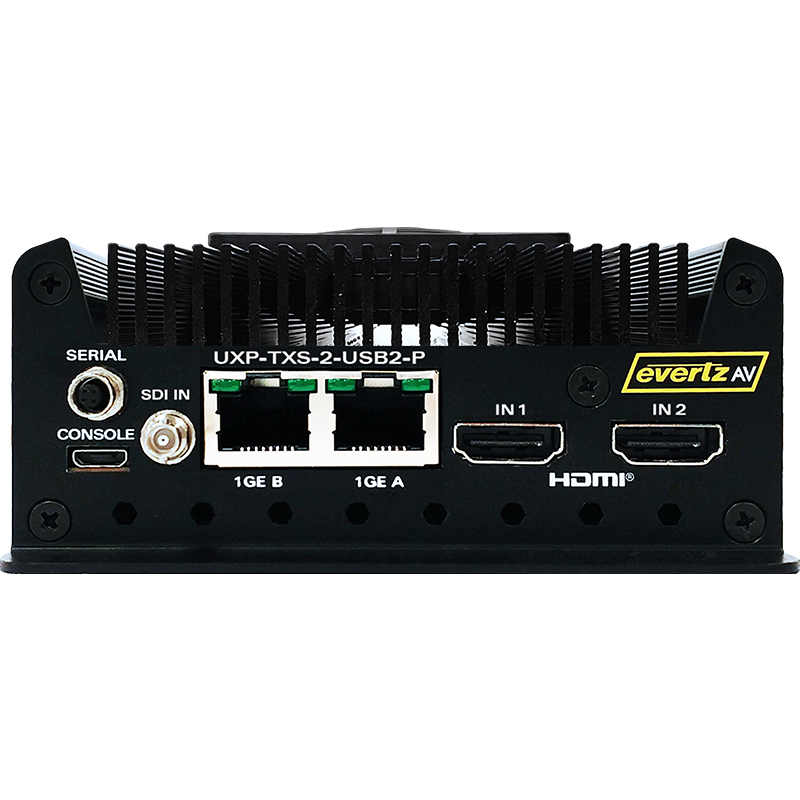

UXP-TXS-2-USB2-P

EvertzAV's UXP-TXS-2-USB2-P standalone AV transmitter is a feature-rich, dual-channel HDMI video and audio transmit gateway supporting 1G and 2.5G transport rates. The UXP-TXS-2-USB2-P has been designed to take advantage of the fact that more and more entry-level COTS switches support 2.5G, and thus it employs intelligent auto sensing technology that automatically adjusts video quality based on the available transport rate. The UXP-TXS-2-USB2-P can be used send video (with the video source being either HDMI or SDI), audio, serial, USB HID, and USB 2.0 data. It is a compact and quiet standalone device with an integrated fan that can be mounted / installed in various in room locations, including behind monitors, and under desks, lecterns, and floor boxes.

Key Features
• Two HDMI inputs (HDMI type A)
• Resolution up to 3840x2160p @ 30 Hz, 4:4:4 color sampling*
• Auto-discovery and simplified provisioning features
• Ultra low latency transport over 1GbE or 2.5GbE with 802.3at Type 2 PoE+ support
• Full integration with the NUCLEUS AV over IP platform
• RS-232/RS-422 serial port
• Standalone device with integrated fan (fanless variant - UXP-TXSQ-2-USB2-P - available)
• IPMX certified for uncompressed, JPEG XS, JPEG XS TDC video, uncompressed LPCM/AES 67 audio, HKEP/HDCP, PEP
