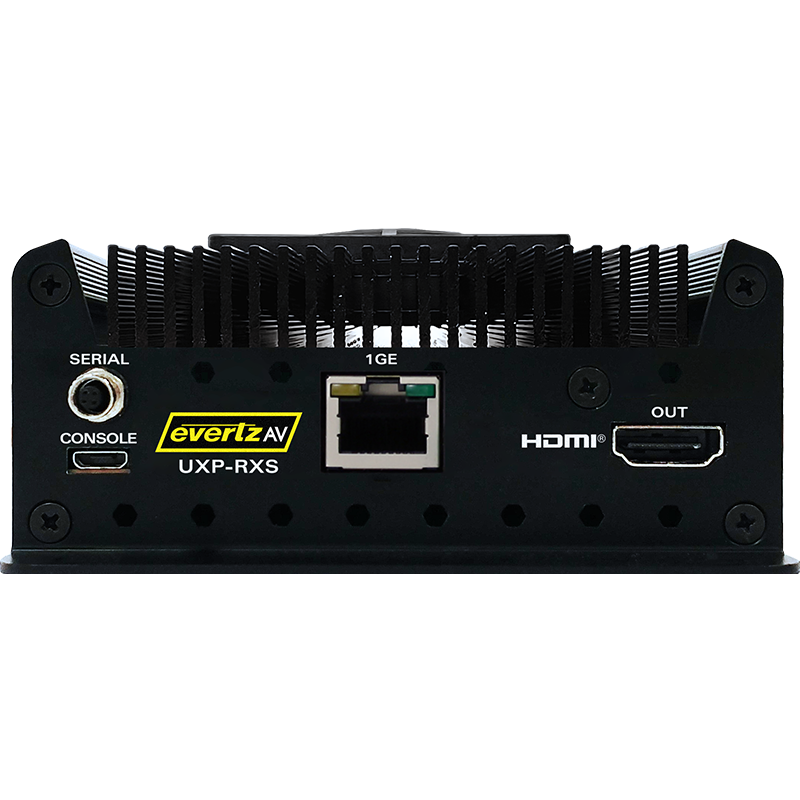

UXP-RSX

The UXP-RXS AV receiver is a no-nonsense, cost-effective, single-channel HDMI video and audio receive gateway. It is a compact and quiet standalone device with an integrated fan that can be mounted/installed in various in room locations, including behind monitors, and under desks, lecterns, and floor boxes. Reduce decision making at design time by simply adding up and ordering the number of receiving end points you need in your system.

Key Features
• One HDMI input and one HDMI output (HDMI type A)
• Resolution up to 3840x2160p @ 30 Hz, 4:4:4 color sampling*
• Auto-discovery and simplified provisioning features
• Ultra low latency transport over 1GbE or 2.5GbE with 802.3at Type 2 PoE+ support
• Full integration with the NUCLEUS AV over IP platform
• RS-232/RS-422 serial port
• Standalone device with integrated fan (fanless variant - UXP-RXSQ - available)
• Dual receive mode allowing for Picture-in-Picture (PiP) functionality
• IPMX certified for uncompressed, JPEG XS, JPEG XS TDC video, uncompressed LPCM/AES 67 audio, HKEP/HDCP, PEP
