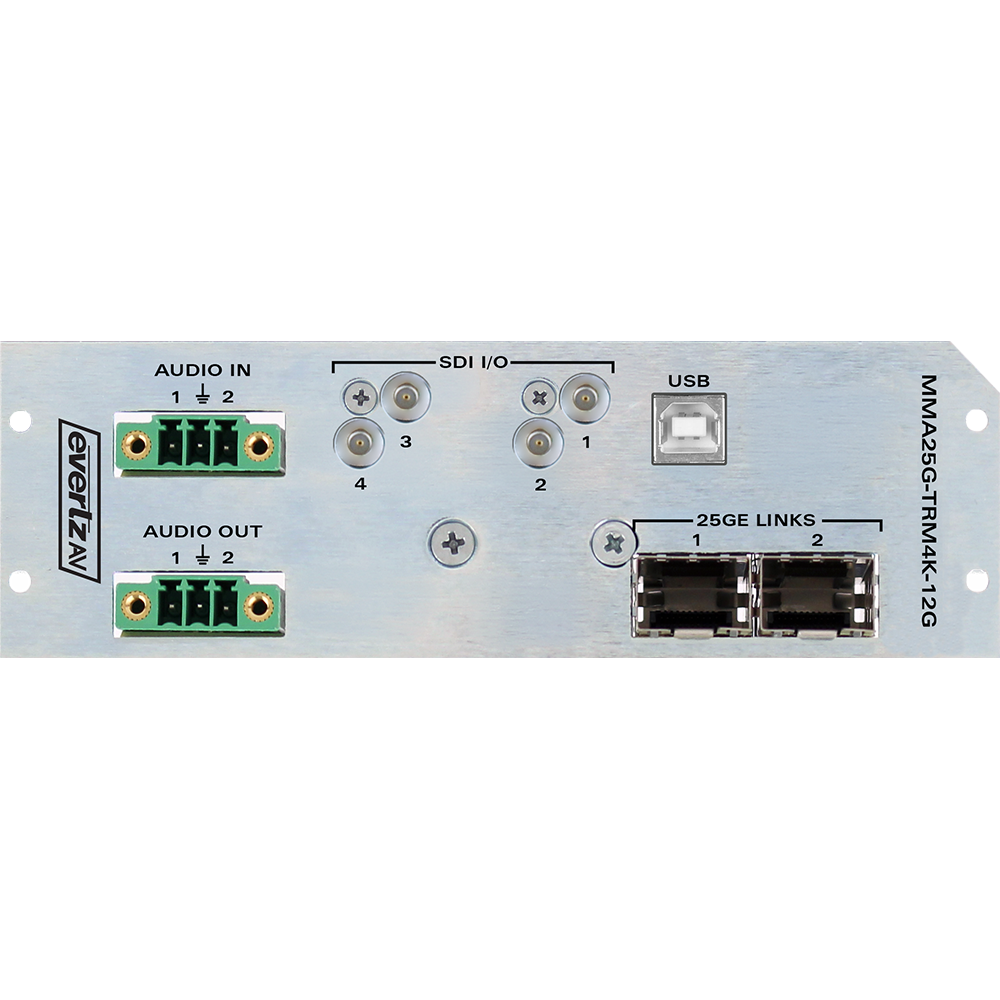

MMA25G-TRM4K-12G

The MMA25G-TRM4K-12G is a versatile 25GE SDI gateway that has three main modes of operation:
• Dual transmit mode allows you to ingest uncompressed broadcast video and audio from any two of the four 12G-SDI inputs and output via the two 25G fiber links at up to 4K60 with visually lossless compression.
• Dual receive mode allows you to ingest up to 4K60 compressed video and audio from the two 25G fiber links and output via any two of the four SDI outputs uncompressed.
• Dual transceive mode allows you to use any two of the 12G-SDI ports as inputs and the two 12G-SDI ports as outputs.
The MMA25G-TRM4K-12G is a modular device and is installed in an Evertz rack mount modular frame. This approach offers flexibility and density as well as a secure and reliable solution for mounting next to servers.

Key Features
• Four 12G-SDI (DIN) nputs or outputs (software defined)
• Three main modes of operation: dual receive, dual transmit, and dual transceive
• Supports 2SI method of transport outlined in SMPTE 425-5
• IPMX support for uncompressed, JPEG XS, JPEG XS TDC, AES67, PTP, and more
